4. FUENTE GIGABYTE 550W GP-P550B 80 PLUS BRONZE FUEGPP550B

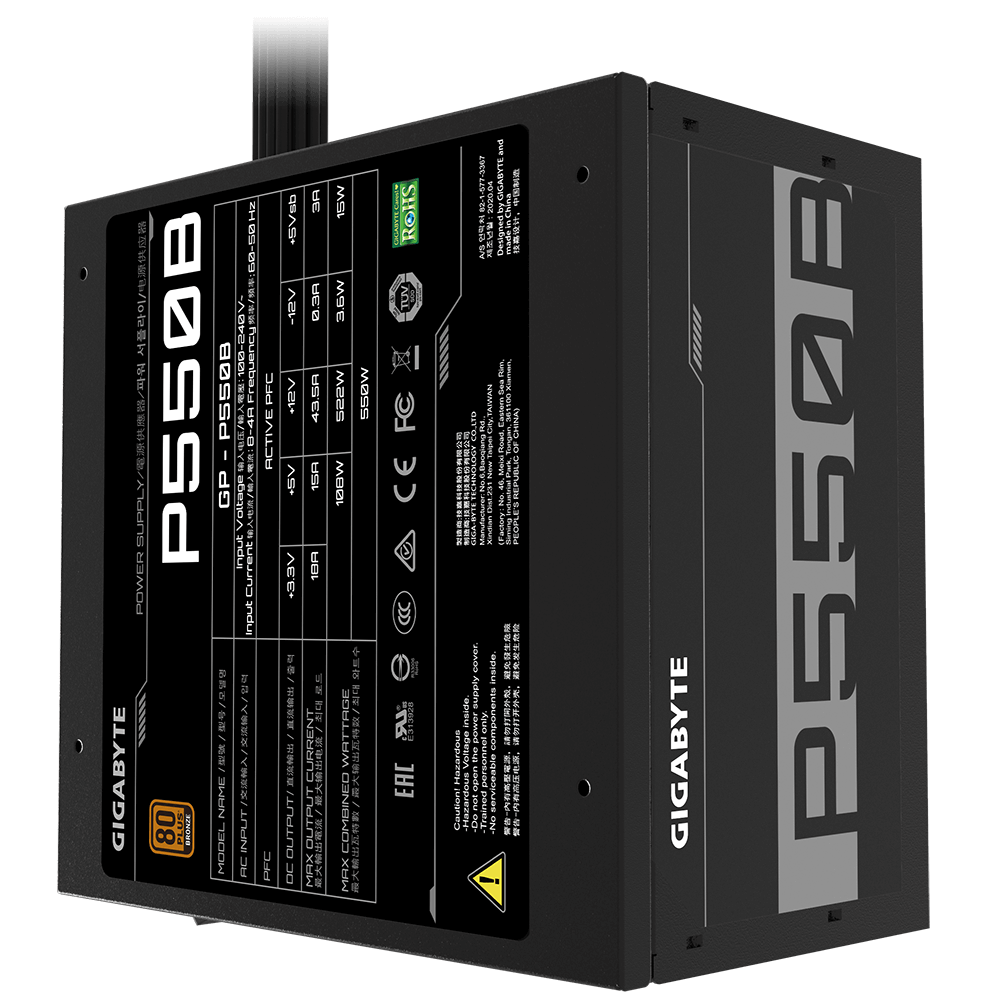

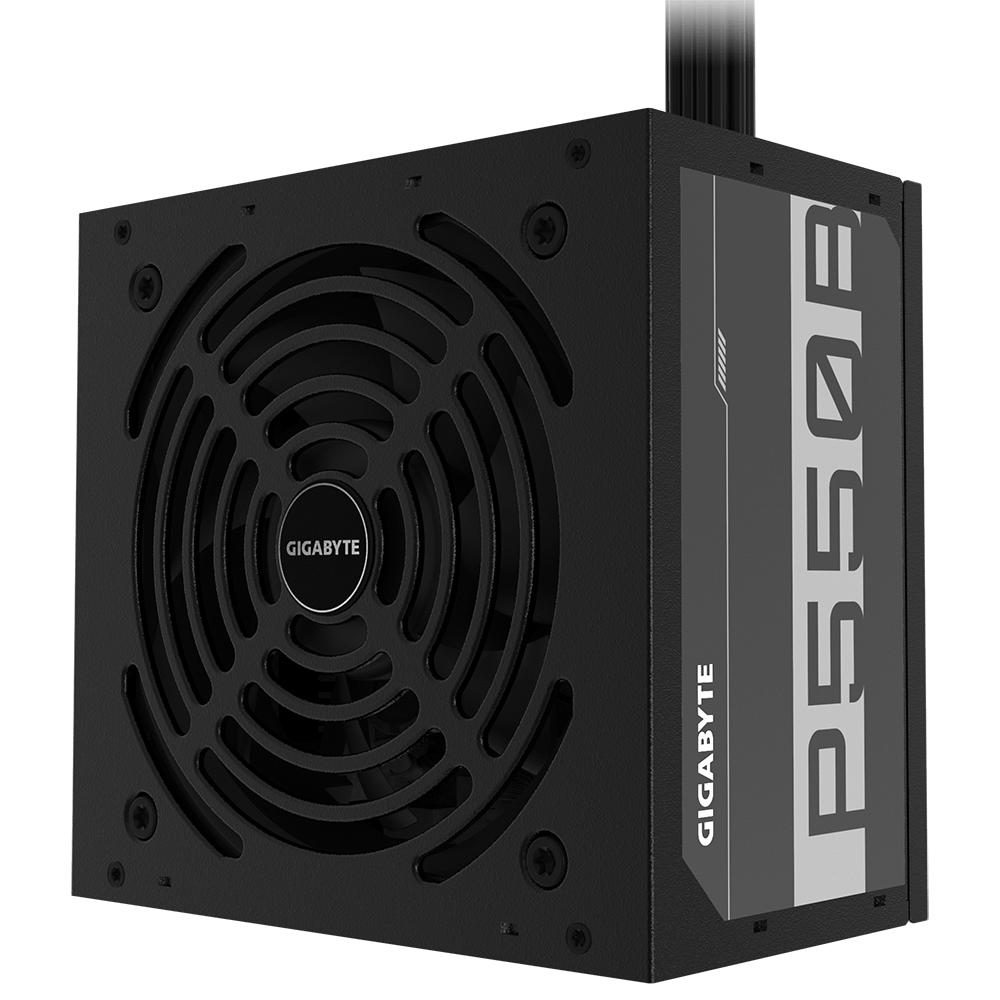

FUENTE GIGABYTE 550W GP-P550B 80 PLUS BRONZE FUEGPP550B

•
•
•

Características

SOLO SE VENDEN EN PC COMPLETAS

Model : P550B

Type : Intel Form Factor ATX 12V v2.31

PFC : Active PFC(>0.9 typical)

Input Voltage : 1‎00-240 Vac(full range)

Input Current : 8‎-4 A

Input Frequency : 6‎0-50 Hz

Output Capacity : 5‎50W

Dimension : 1‎50 x 140 x 86 mm

Fan Type : 1‎20mm Hydraulic Bearing (HYB) Fan

80 PLUS : Bronze

Efficiency : 8‎5% at typical load

MTBF : >100,000 hours

Protection : OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal : 1‎00-500ms

Hold Up Time : >16ms

Cable Type : Flat, All black

Connectors : ATX/MB 20+4 Pin x 1 : 550mm*1 / CPU/EPS 4+4 Pin x 1 : 600mm*1 /PCI-e 6+2 Pin x 2 :

550mm+150mm*1 / SATA x 6 : 500mm+120mm+120mm*2 / 4 Pin Peripheral x 3 + 4-Pin

floppy x 1 : 500mm+120mm+120mm+120mm*1

Garantía: 1 año

  Página del Fabricante
